Factory Lead Time

8 Weeks

Mounting Type

Surface Mount

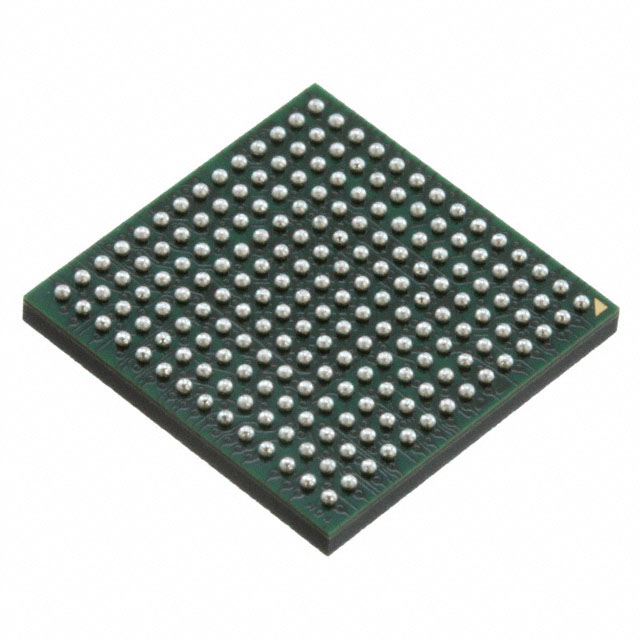

Package / Case

196-LFBGA Exposed Pad

Surface Mount

YES

Number of Pins

196

Operating Temperature

-40°C~85°C

Packaging

Tray

Series

TxDAC+®

Pbfree Code

no

Part Status

PRODUCTION (Last Updated: 3 weeks ago)

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

196

ECCN Code

EAR99

Max Power Dissipation

3W

Voltage - Supply

3.3V

Terminal Position

BOTTOM

Terminal Form

BALL

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Terminal Pitch

0.8mm

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

AD9148

Qualification Status

Not Qualified

Output Type

Current - Unbuffered

Polarity

Unipolar

Interface

LVDS, Parallel, SPI

Power Dissipation

3W

Number of Bits

16

Min Input Voltage

1.2V

Architecture

Current Source

Max Input Voltage

1.2V

Converter Type

D/A CONVERTER

Reference Type

External, Internal

Data Interface

LVDS - Parallel

Differential Output

Yes

Resolution

2 B

Sampling Rate

1 Gsps

Voltage - Supply, Analog

3.13V~3.47V

Voltage - Supply, Digital

1.71V~1.89V

Settling Time

20ns (Typ)

Integral Nonlinearity (INL)

3.7 LSB

Input Bit Code

BINARY, 2'S COMPLEMENT BINARY

Number of Converters

4

Conversion Rate

1 Gsps

INL/DNL (LSB)

±3.7, ±2.1

Input Format

SERIAL

Analog Output Voltage-Max

1V

Voltage - Supply (Max)

3.47V

Voltage - Supply (Min)

3.13V

Analog Output Voltage-Min

-1V

Height

1.09mm

Length

12.1mm

Width

12.1mm

RoHS Status

ROHS3 Compliant

REACH SVHC

No SVHC

Lead Free

Contains Lead
